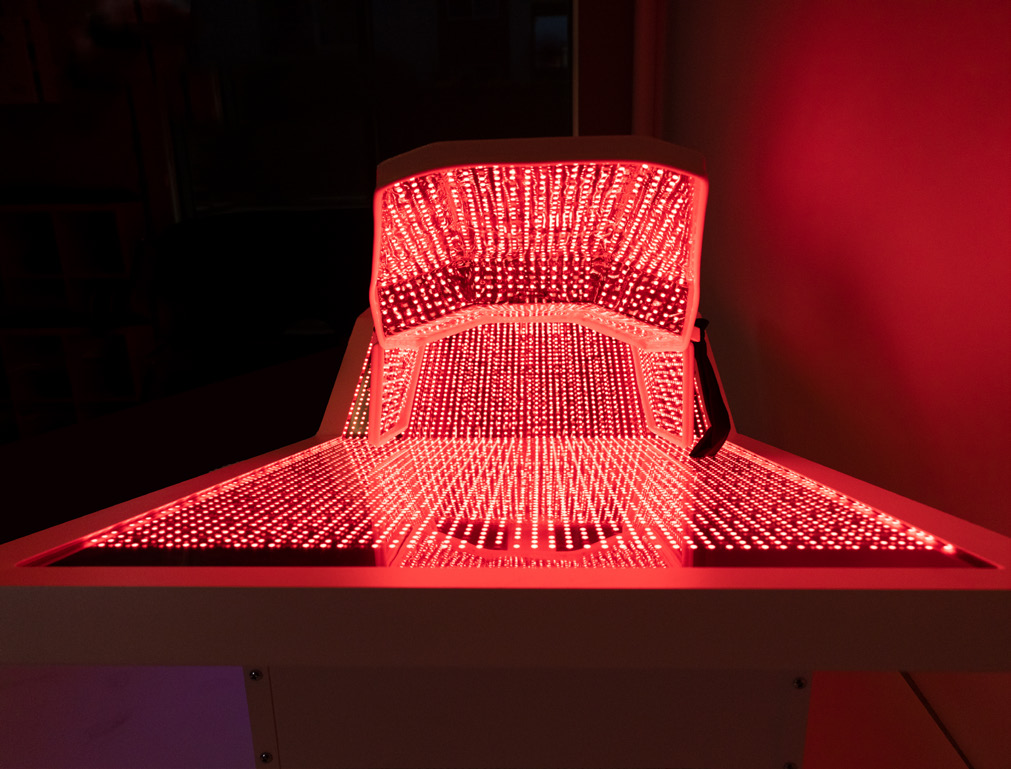

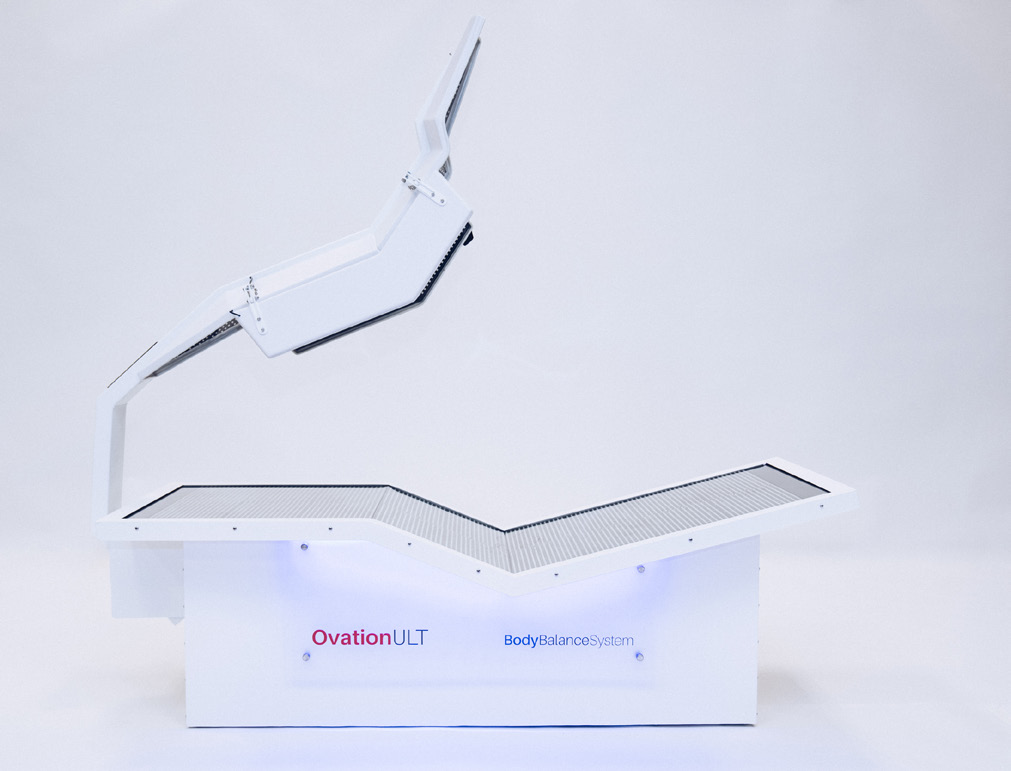

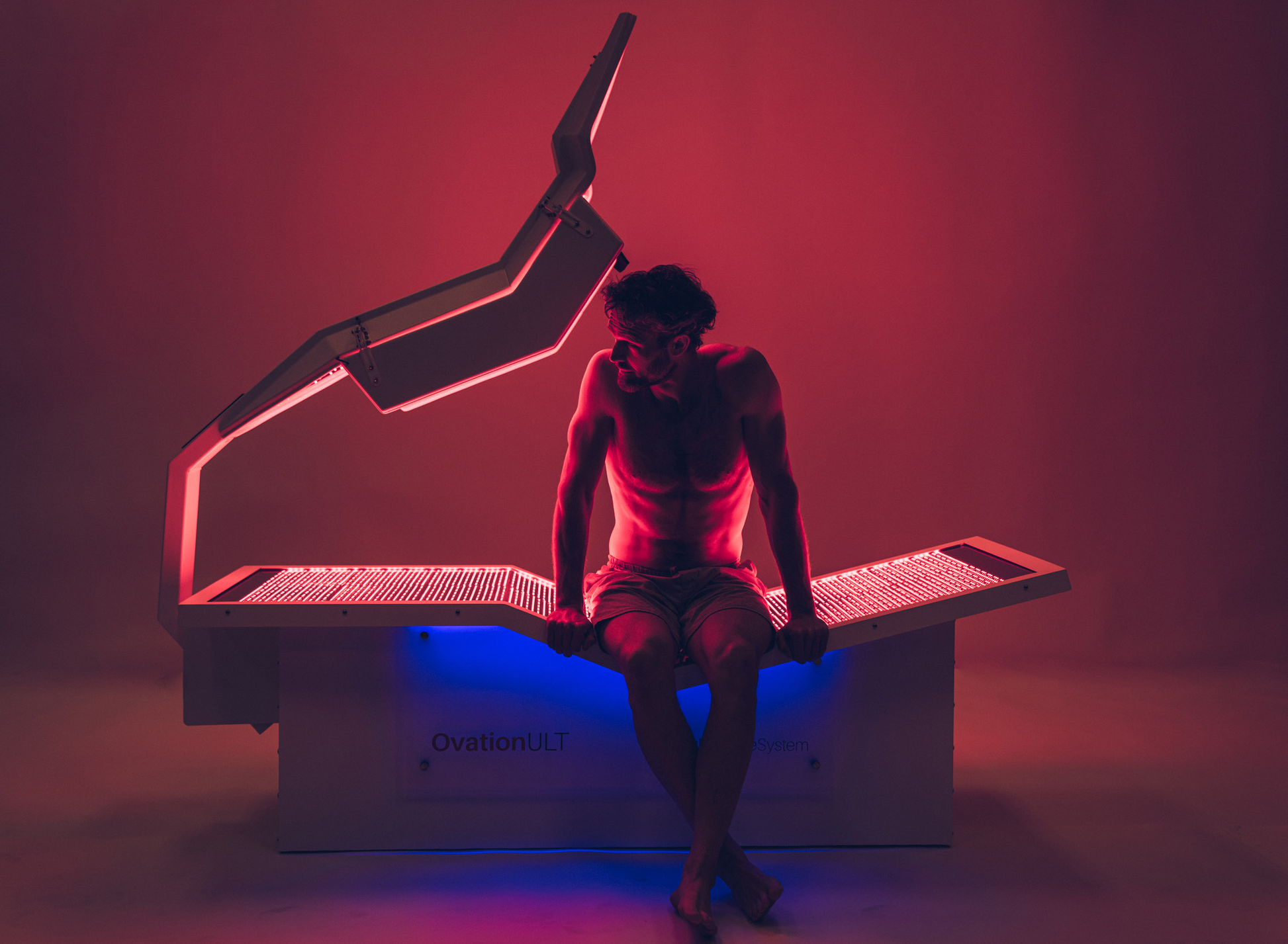

OvationULT Red Light Therapy Bed

Device Specifications:

• Unit Dimensions: 80” L x 31” W x 40 “H

• Weight of machine: 175lbs

• Max allowable patient mass is 450lbs

• Power Input: 115/230 VAC

* Input Breakdown:

• 100-240VAC

• 50/60Hz

• 8.5A-5A

* Appliance Inlet Fuse Breakdown:

• 15A/250V AC

• Operating Speed: Fast Blow

• Size: 5mmx20mm

• Breaking Capacity: 150A

• Total Output: 24 VDC & 23.52 Amps

* Output Breakdown:

• 24V DC-11.14 A (Canopy) @ 50/60 Hz

• 24V DC-11.5 A (Base) @ 50/60 Hz

• 12V DC-0.23A (Underlighting) @50/60 Hz

• 24V DC- 0.65A (Timer) @ 50/60 Hz

• Number of Diodes: 9,481 Diodes (3 light sources per diode)

• Diode breakdown: 7,585 Red 1,896 Infrared

• Lenses: 9/16 from center

• Max allowable temp of applied parts is 75° C.

• Color Range: 635nm (Red) & 850nm (IR)

• Fits through standard 32” opening

• Plugs into standard 3 prong outlet

Irradiance Specifications:

• The OvationULT has been tested to IEC

62471:2006 (First Edition) Standards

• Risk Group: EXEMPT

• AVG Irradiance: 65mWcm2 measured from

polycarbonate surface +/- 10mWcm2

• MAX irradiance: 75mWcm2 measured from

polycarbonate surface

• Frequencies - 635nm (RED) and 850nm (IR)

• Spectral Radiance: 4.09092 x103 W/m2•sr

• Color Range: 635nm (Red) & 850nm (IR)
